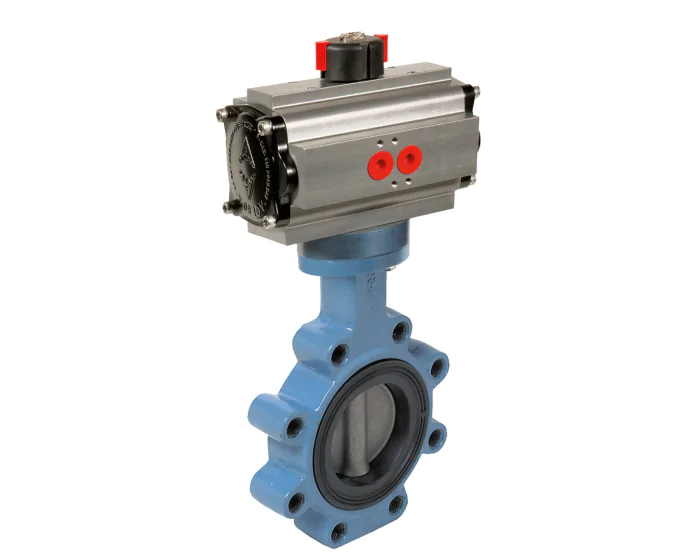

The 1163 series ductile iron butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M disc, up to DN300. It is a lug type.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 304 |
| Adjustable limit screws | Yes |
| Lockable | No |
| ATEX compatible | Yes |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 78 |
| Seat | EPDM |
| Body material | Ductile iron |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Between flanges PN10 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Warranty period | 2 years |
| CE | Risk category III |
| Range | TTV |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10 Ductile iron Concentric DN40 - 1''1/2 Double acting | 261393015100 | S1003617 |
€220.41
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN40 - 1''1/2 Spring return | 261393016101 | S1003618 |
€243.47
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN50 - 2'' Double acting | 261394015100 | S1003619 |
€220.41
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN50 - 2'' Spring return | 261394016101 | S1003620 |
€245.79
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN65 - 2''1/2 Double acting | 261395015101 | S1003621 |
€262.64
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN65 - 2''1/2 Spring return | 261395016102 | S1003622 |
€297.73
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN80 - 3'' Double acting | 261396015101 | S1003623 |
€296.46
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN80 - 3'' Spring return | 261396016102 | S1003624 |
€314.44
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN100 - 4'' Double acting | 261397015102 | S1003625 |
€330.69
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN100 - 4'' Spring return | 261397016103 | S1003626 |
€351.31
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN125 - 5'' Double acting | 261398015102 | S1003627 |
€382.29
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN125 - 5'' Spring return | 261398016104 | S1003628 |
€452.70
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN150 - 6'' Double acting | 261399015103 | S1003629 |
€466.46
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN150 - 6'' Spring return | 261399016106 | S1003630 |
€666.19
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN200 - 8'' Double acting | 261400015104 | S1003631 |
€629.30
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN200 - 8'' Spring return | 261400016107 | S1003632 |
€1,092.61
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric Double acting DN250 - 10'' | 261401015105 | S1003633 |
€898.71
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric Spring return DN250 - 10'' | 261401016107 | S1003634 |
€1,057.61
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric Double acting DN300 - 12'' | 261402015106 | S1003635 |
€1,253.74
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric Spring return DN300 - 12'' | 261402016108 | S1003636 |
€1,525.43
(excl. btw)
|
add to cart |
